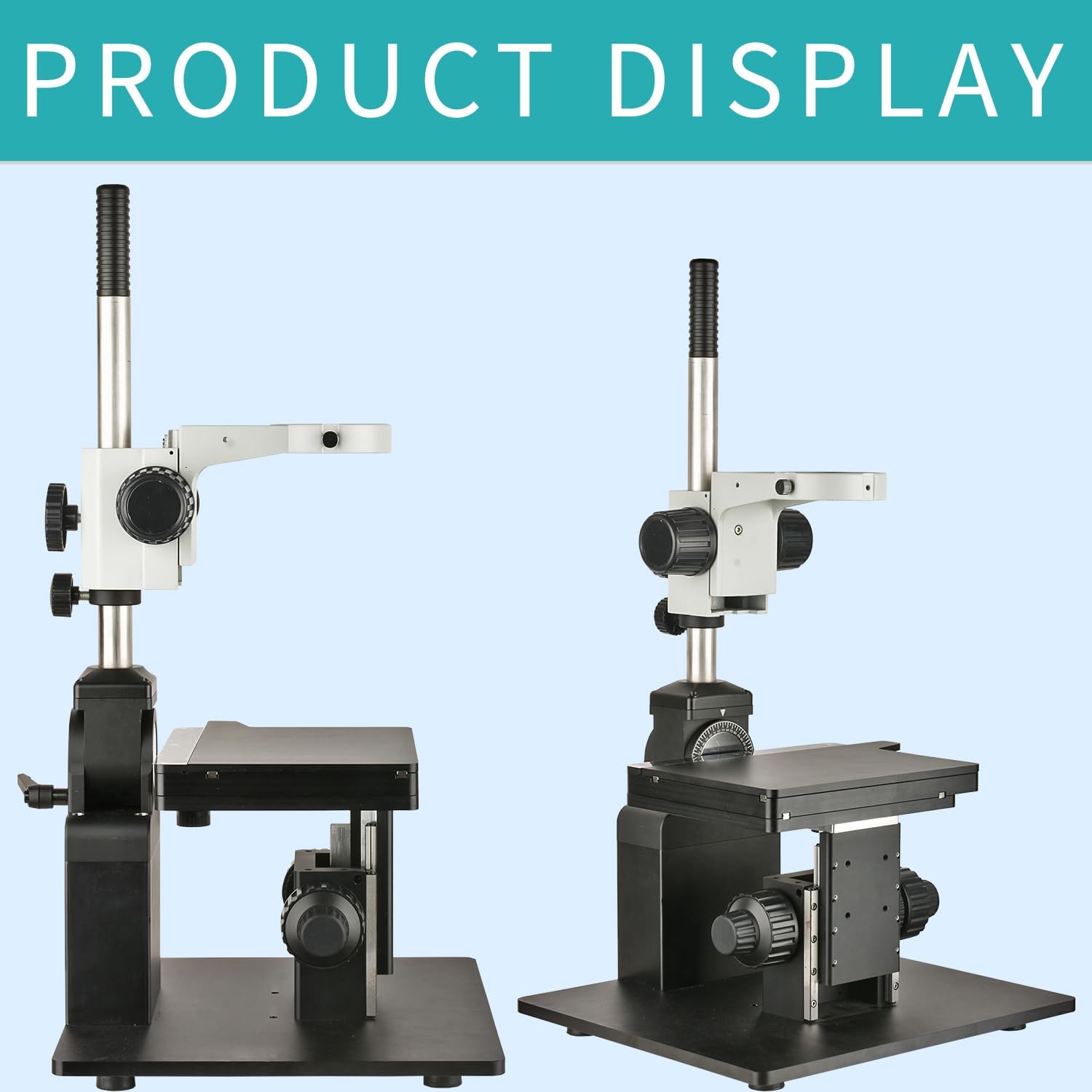

X/Y/Z Adjustable Microscope Stand 76mm

X/Y/Z Adjustable Microscope Stand 76mm

Regular price $1,389.99 USD
Regular price $1,389.99 USD Sale price $1,389.99 USD
Sale Sold out
Shipping calculated at checkout.
Quantity

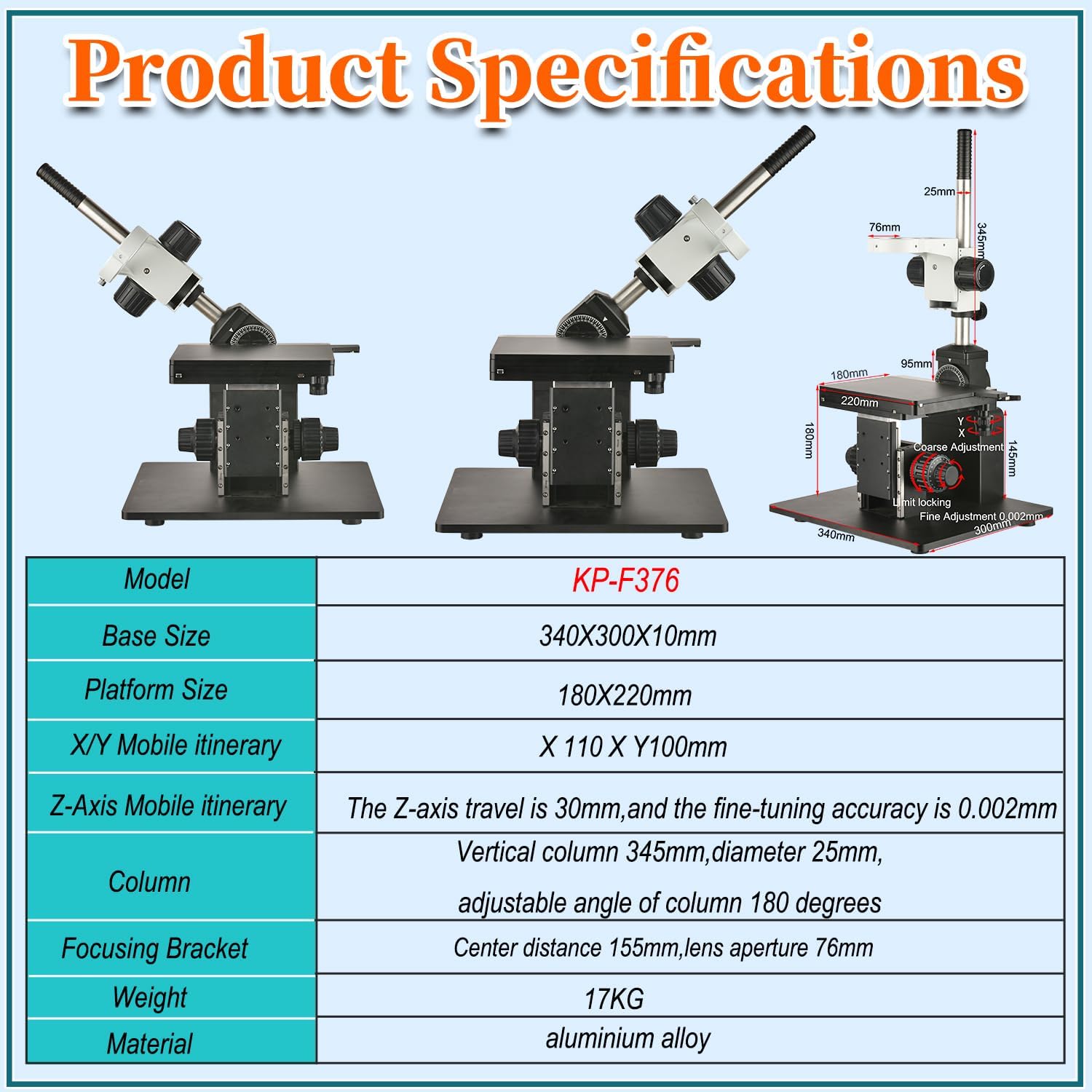

Model:KP-F376
Base Size:340X300X10mm
Platform Size:180X220mm

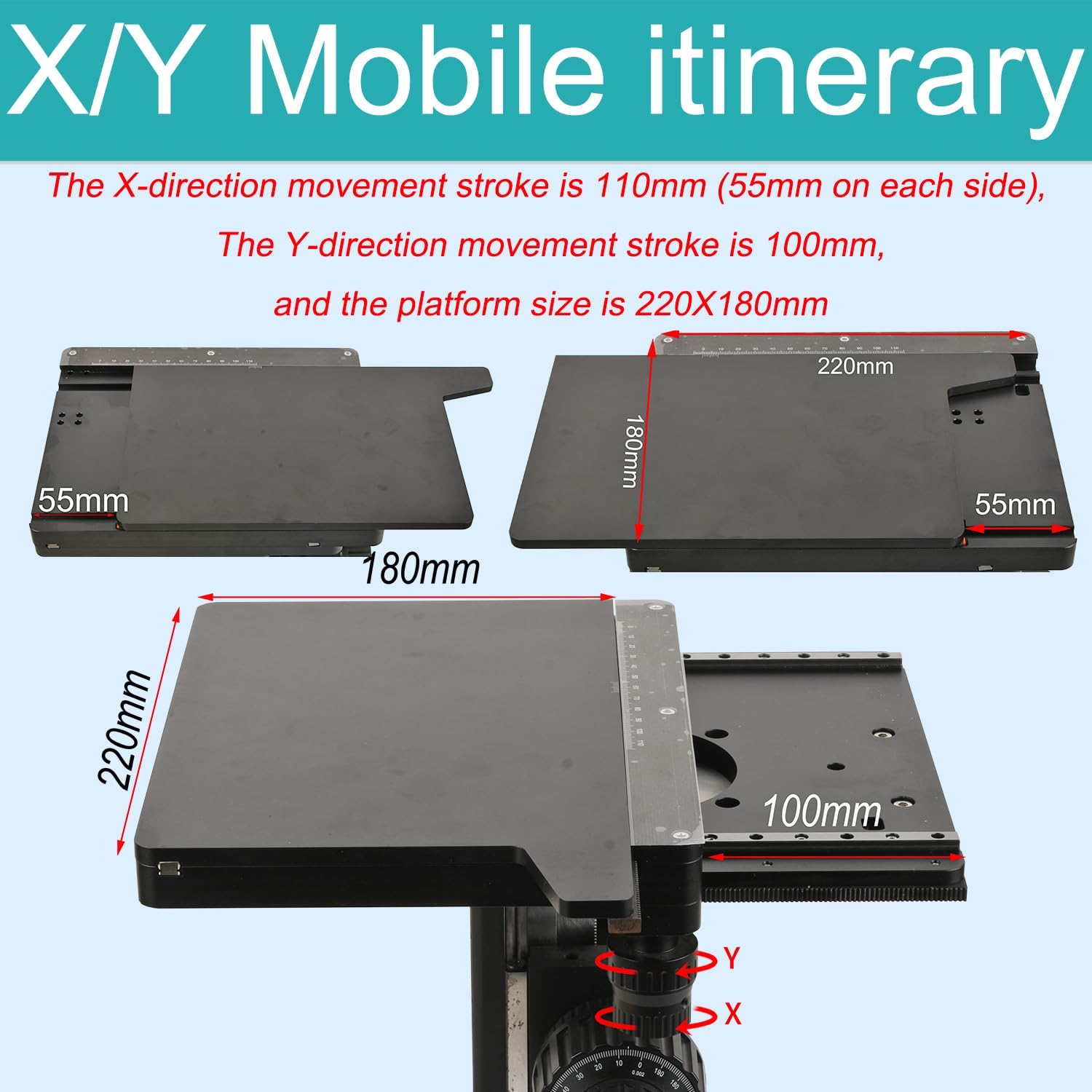

X/Y Mobile itinerary:X 110 X Y100mm

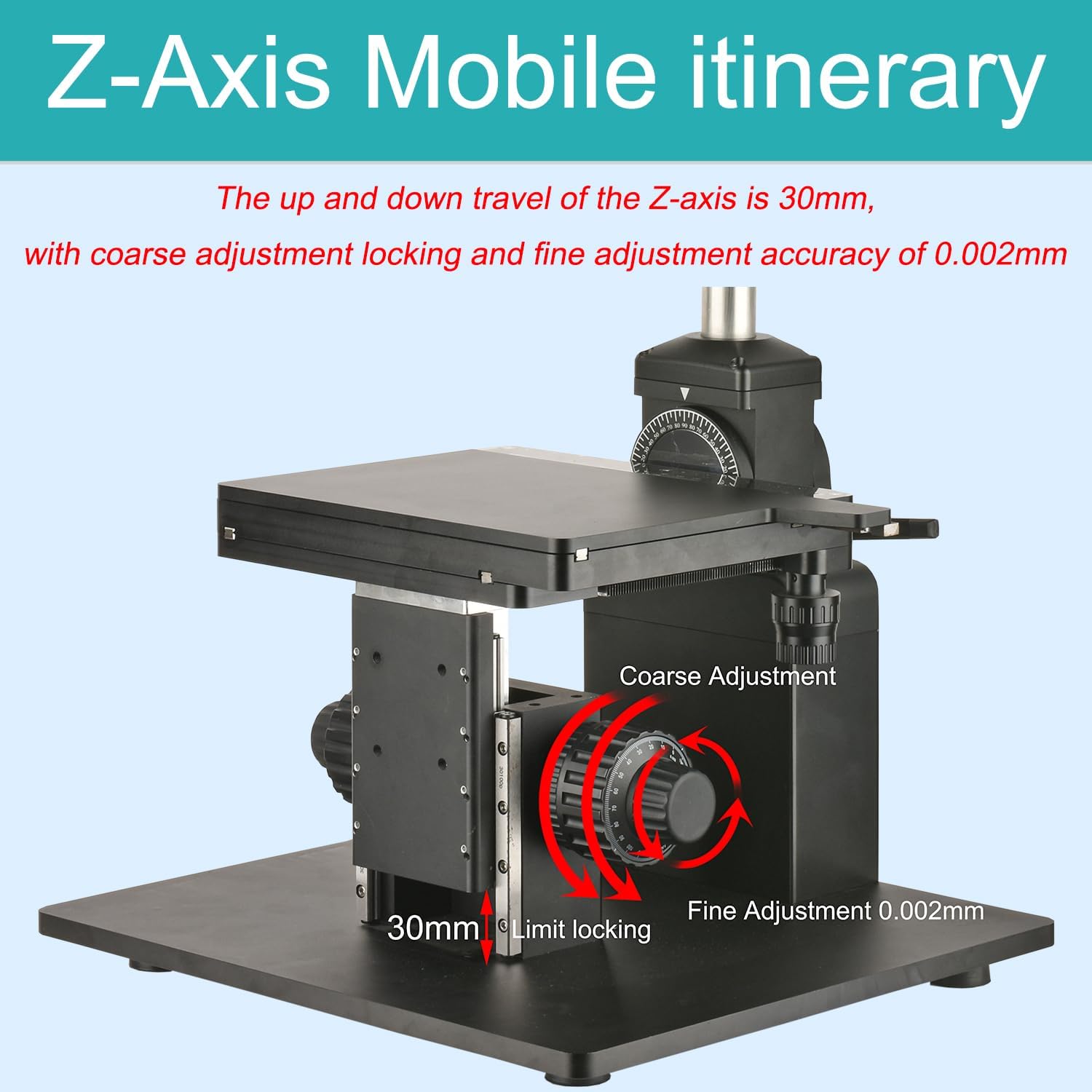

Z-Axis Mobile itinerary:The Z-axis travel is 30mm,and the fine-tuning accuracy is 0.002mm

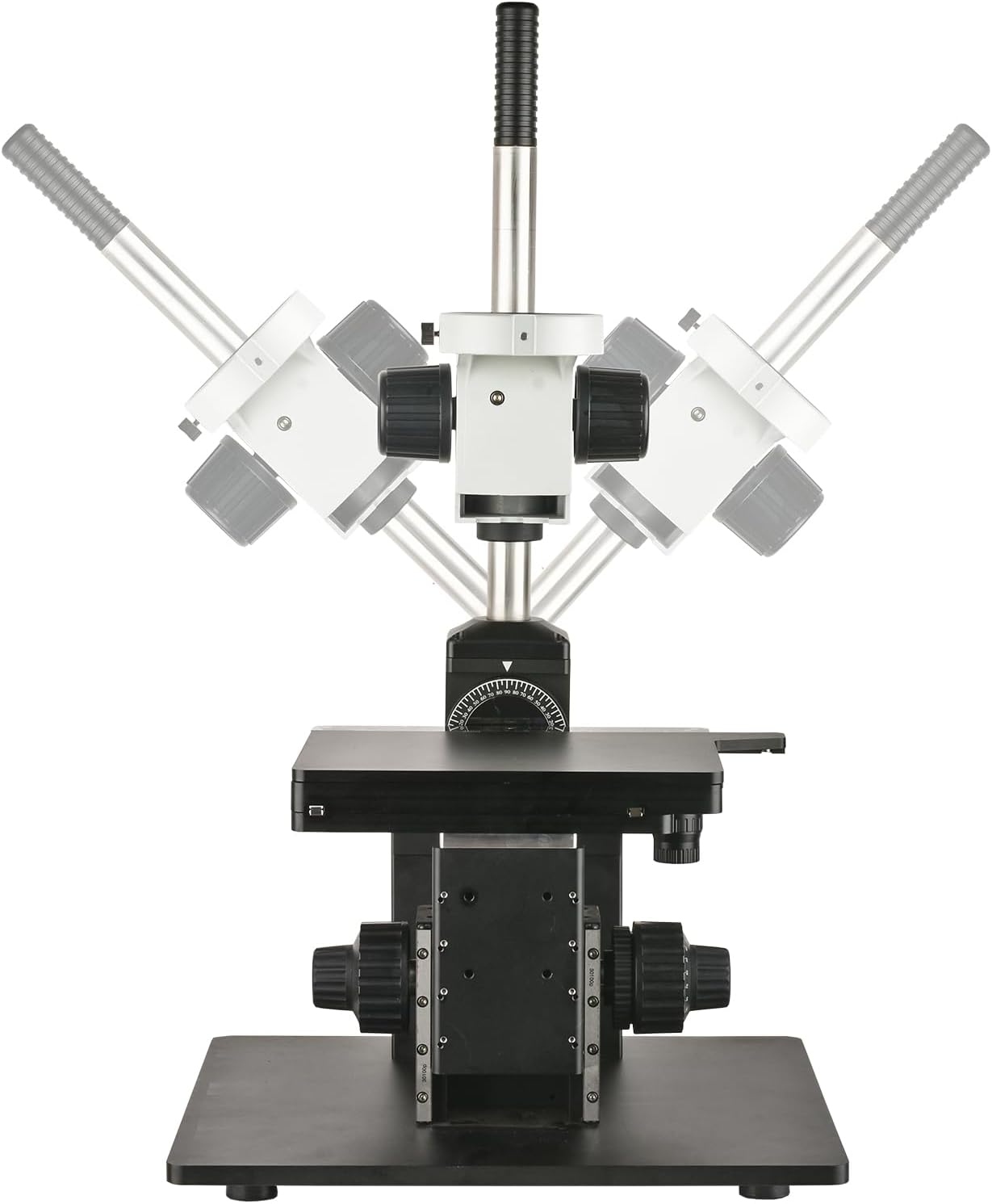

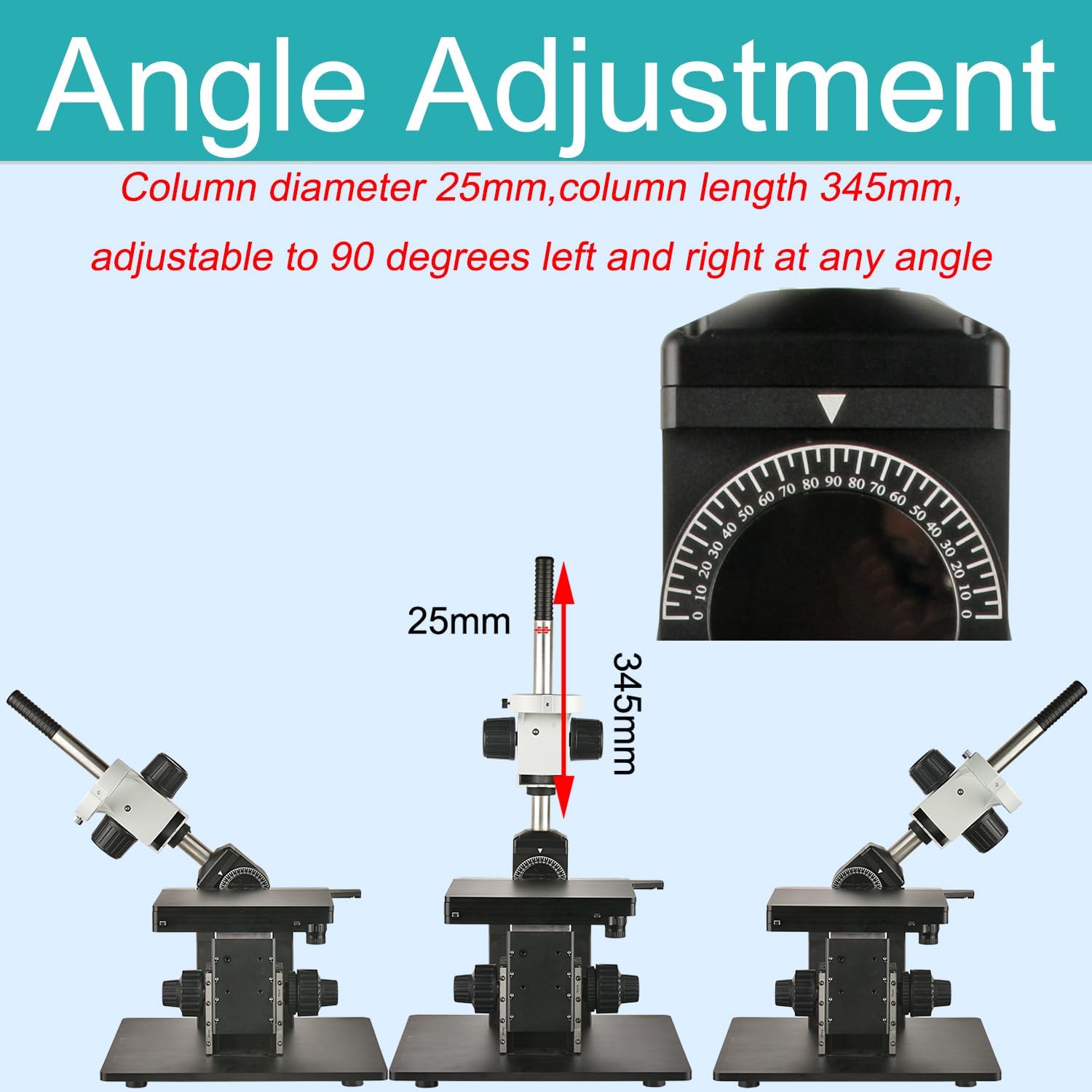

Column:Vertical column 345mm,diameter 25mm, adjustable angle of column 180 degrees

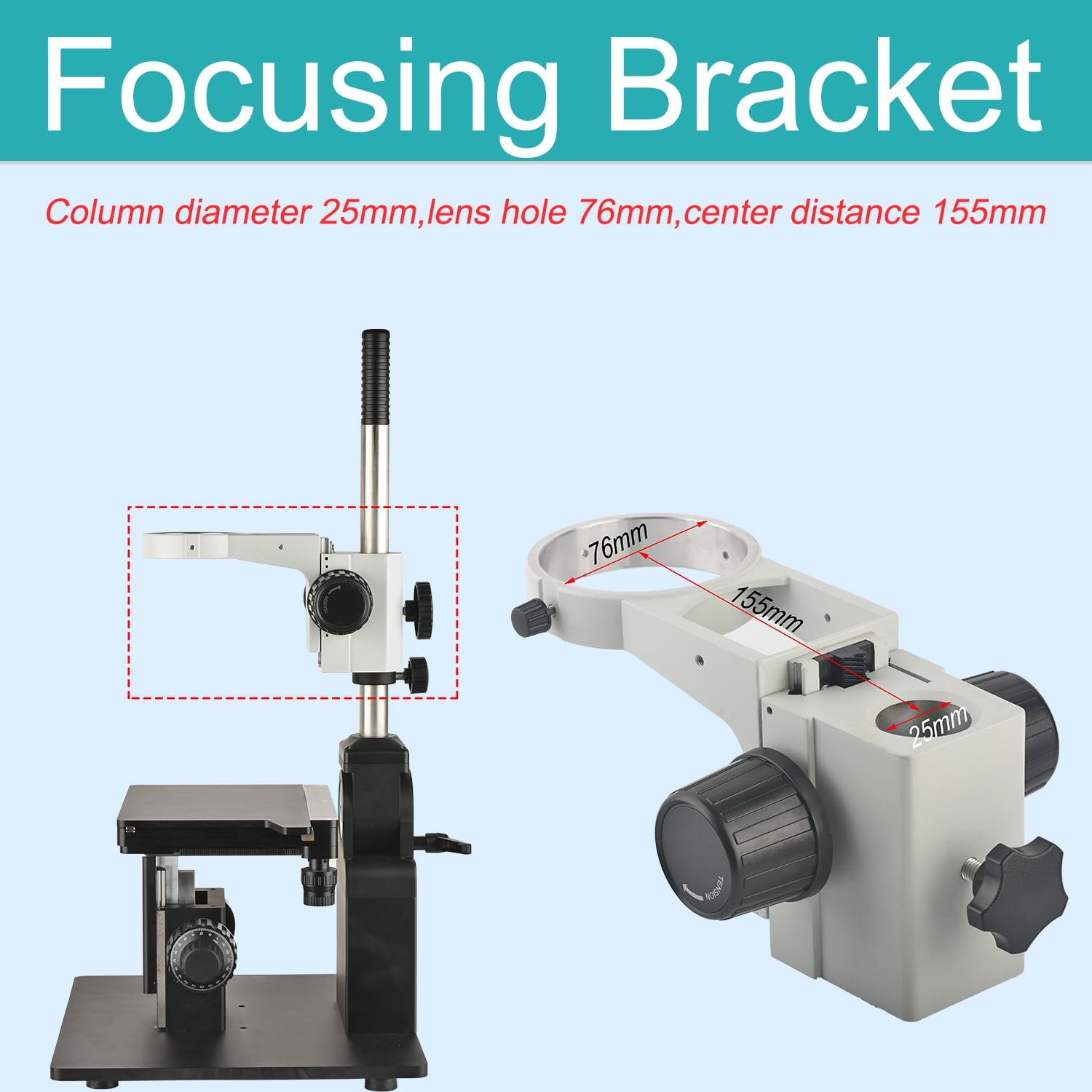

Focusing Bracket:Center distance 155mm,lens aperture 76mm
Weight:17KG
Material:aluminium alloy

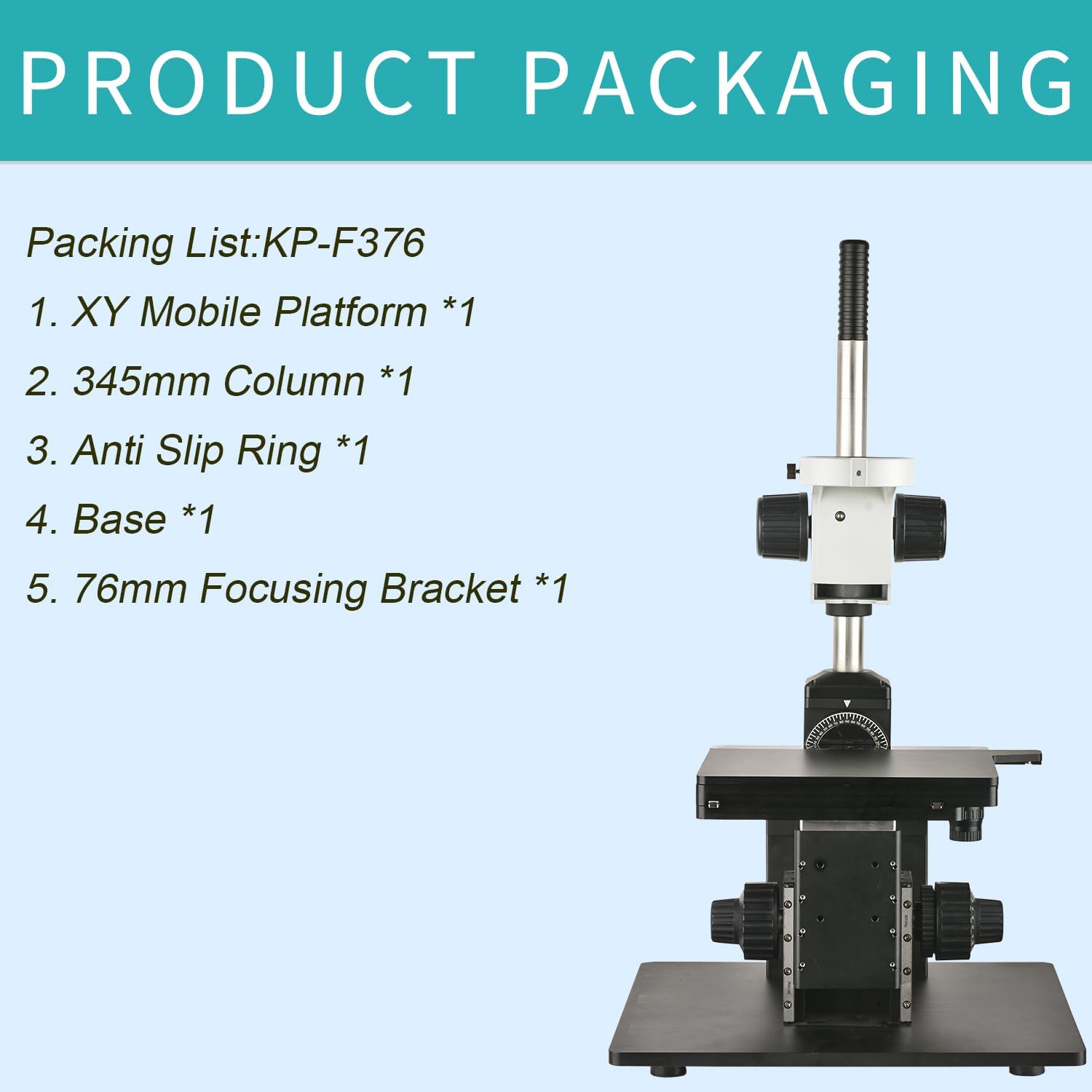

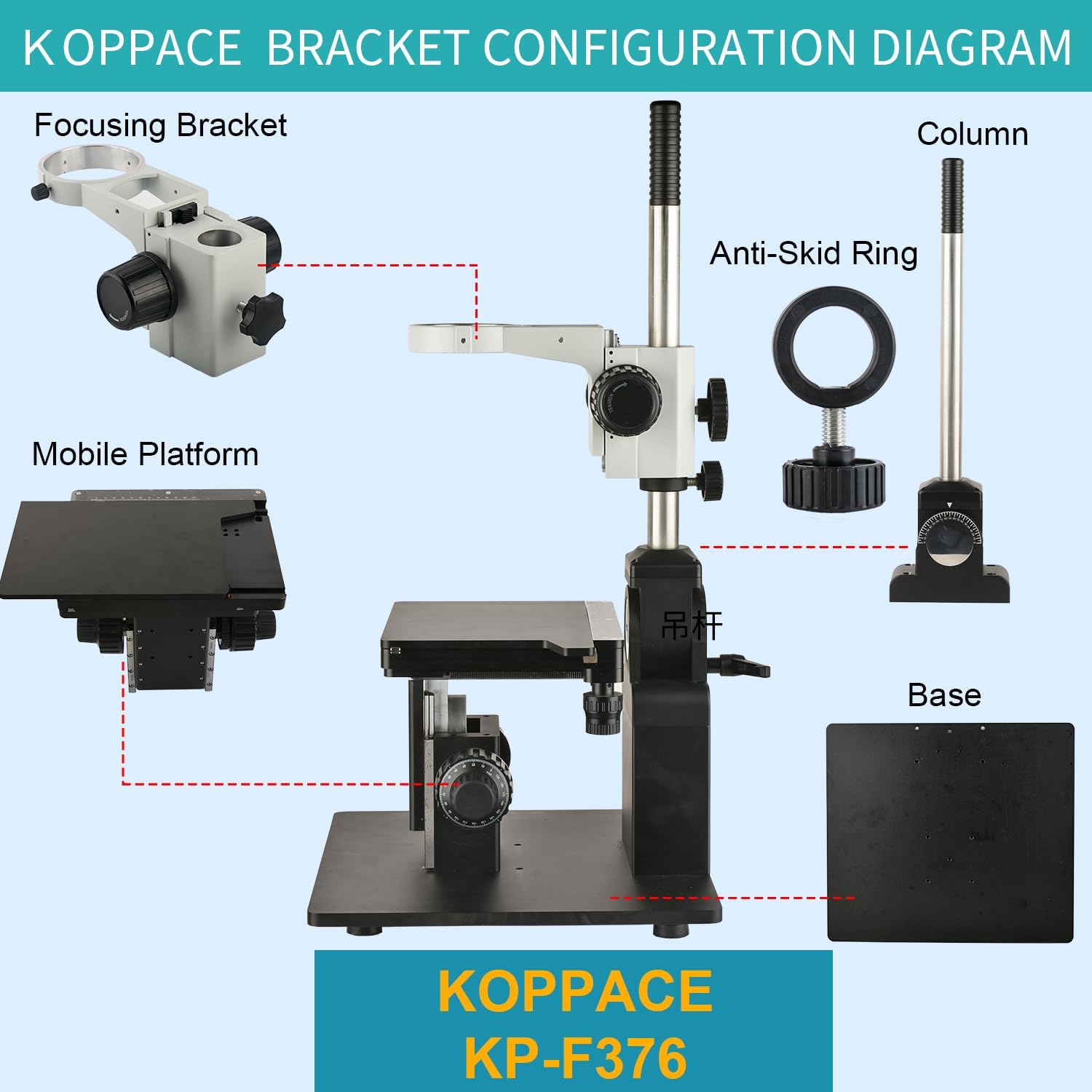

Packing List:
1. XY Mobile Platform *1
2. 345mm Column *1
3. Anti Slip Ring *1
4. Base *1
5. 76mm Focusing Bracket *1

  • Base Size:340X300X10mm
  • Platform Size:180X220mm
  • X/Y Mobile itinerary:X 110 X Y100mm
  • Z-Axis Mobile itinerary:The Z-axis travel is 30mm
